Tractor construction machinery CAT D7R crawler bulldozer
  • Tractor construction machinery CAT D7R crawler bulldozer
Payment Type: L/C,T/T,Western Union
Terms of Trade: FOB,CFR,CIF,FCA
Min. Order: 1 Set/Sets
Delivery Time: 30 Days
Packaging: STANDARD
Productivity: 5
Brand: CATERPILLAR
Transportation: Ocean,Land
Place of Origin: TAILAND
Supply Ability: 1
Certificate: CE
HS Code: 84
Port: Yantai Harbor,Qingdao Harbor,Shanghai Harbor
Basic Info

Model No.: CAT D7R

Product Description

Excellent tractor construction machinery 25 tons CAT D7R crawler bulldozer for promotion

Tractor construction machinery CAT D7R crawler bulldozer D7R Medium Dozer

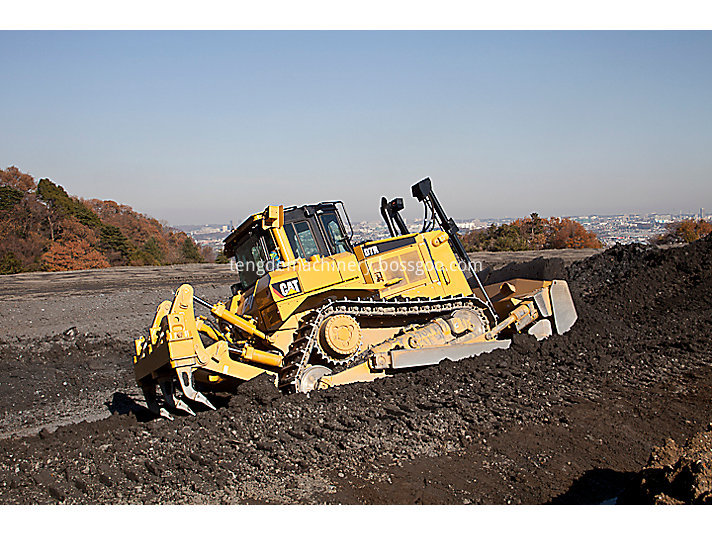

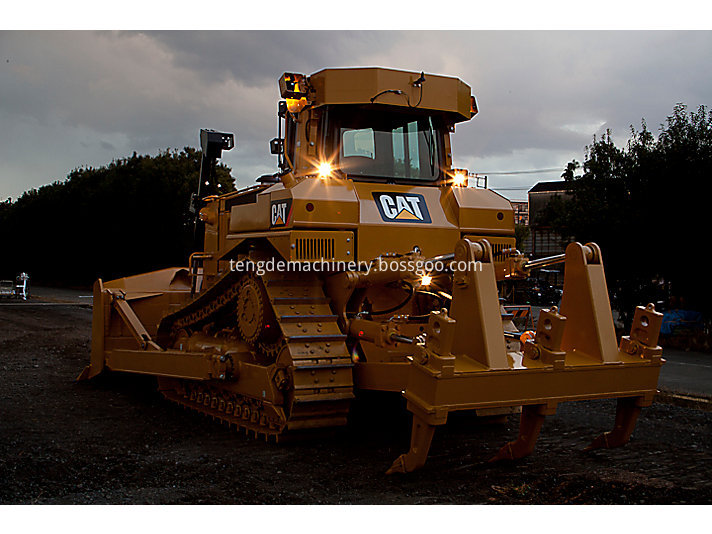

Cat D7R crawler bulldozer

ENGINE

Engine Model Cat® C9 ACERT™
Flywheel Power 194.0 kW
Net Power - ISO 9249 194.0 kW
Bore 112.0 mm
Stroke 149.0 mm
Displacement 8.8 l
Maximum Power - 1,900 rpm - Gross Power - ISO 14396 204.0 kW
Maximum Power - 1,900 rpm - Net Power - ISO 9249 194.0 kW

TRANSMISSION

1.0 Forward 3.52 km/h
2.0 Forward 6.1 km/h
3.0 Forward 10.54 km/h
1.0 Reverse 4.54 km/h
2.0 Reverse 7.85 km/h
3.0 Reverse 13.58 km/h

SERVICE REFILL CAPACITIES

Fuel Tank 479.0 l
Cooling System 73.0 l
Engine Crankcase 28.0 l
Power Train 178.0 l
Final Drive - Each 13.0 l
Hydraulic Tank 54.0 l
Pivot Shaft 32.0 l

WEIGHTS

Operating Weight 24962.0 kg
Operating Weight - STD 24962.0 kg
Operating Weight - Standard 24962.0 kg
Shipping Weight - Standard 20288.0 kg
Operating Weight - XR 25441.0 kg
Shipping Weight - XR 20767.0 kg
Operating Weight - LGP 27101.0 kg
Shipping Weight - LGP 22380.0 kg

UNDERCARRIAGE

Shoes/Side - LGP 43
Grouser Height 71.0 mm
Track on Ground - LGP 3175.0 mm
Ground Contact Area (STD Track) - LGP 5.81 m²
Ground Contact Area (STD Track) - STD 3.21 m²
Ground Contact Area (STD Track) - XR 3.41 m²
Ground Pressure (STD Track) - LGP 45.78 kPa
Ground Pressure (STD Track) - STD 76.32 kPa
Ground Pressure (STD Track) - XR 73.22 kPa
Shoes/Side - STD 40
Shoes/Side - XR 41
Standard Width of Shoe - LGP 914.0 mm
Standard Width of Shoe - STD/XR 560.0 mm
Track on Ground - STD 2870.0 mm
Track on Ground - XR 3048.0 mm

HYDRAULIC CONTROLS - PUMP

Pump Capacity 38500.0 kPa
Pump Type Variable Displacement Piston
RPM at Rated Engine Speed 2231.0 r/min
Pump Output 289.0 l/min
Lift Cylinder Flow 190.0 l/min
Tilt Cylinder Flow 80.0 l/min
Ripper Cylinder Flow 190.0 l/min

HYDRAULIC CONTROLS - MAIN RELIEF VALVE

Pressure Setting 42000.0 kPa

HYDRAULIC CONTROLS - MAXIMUM OPERATING PRESSURE

Bulldozer - Lift 22750.0 kPa
Bulldozer - Tilt 17225.0 kPa
Ripper - Lift 22750.0 kPa
Ripper - Tilt 22750.0 kPa
Steering 38000.0 kPa

BLADES

A-Blade Capacity - STD/XR 3.89 m³
A-Blade Width - STD/XR 4496.0 mm
S-Blade Capacity - LGP 5.89 m³
S-Blade Width - LGP 4545.0 mm
SU-Blade Capacity - STD/XR 6.86 m³
SU-Blade Width - STD/XR 3693.0 mm

RIPPER

Maximum Clearance Raised - Under Tip, Pinned in Bottom Hole 757.0 mm
Maximum Penetration Force 85.0 kN
Pitch Adjustment, Ripper Down - Backward 10.0 °
Pitch Adjustment, Ripper Down - Forward 15.0 °
Pry-Out Force 176.6 kN
Weight - With Three Shanks 3337.0 kg
Type Adjustable Parallelogram
Number of Pockets 3
Overall Beam Width 2210.0 mm
Maximum Penetration 748.0 mm

STANDARDS

ROPS/FOPS Standards
Cab Meets the appropriate standards as listed below
Brakes Brakes meet the standard SAE J/ISO 10265 MAR99

used Cat D7R crawler bulldozer
